While every effort has been made to ensure the correct implementation of the Plug-In Gait model in Visual3D, some differences may still persist, most likely caused by the different pose estimations used within Nexus and Visual3D.

The conventional gait model (CGM) has many variations and can go by many names: Helen Hayes, Vicon Clinical Manager, Newington, and Cleveland Clinic to name a few. We highly recommend reading the Tutorial: Building a Conventional Gait Model prior to going through this tutorial.

Workstation or Nexus users will be familiar with the Plug-In Gait variation as Vicon's implementation of the CGM.

In this tutorial, we describe this implementation of Vicon's Plug-In Gait using Visual3D, with the necessary modifications made for marker placement error specific to this dataset.

In some trials, clear errors in marker placement can be identified when viewing the model. Here we make the necessary adaptations to the model to compensate.

Shank Definition: In this tutorial the RKNE marker was added as the lateral boundary for the right shank definition. This was added to improve alignment of the shank and correct excessive incorrect internal rotation of the tibia that was previously present.

Toe Landmark: The R_Toe_Z landmark was introduced to align the anterior axis of the foot with that of the shank and thigh segments (assuming the subject is standing in alignment). It serves as the distal joint center and the posterior foot alignment.

You can download the sample files here. These sample files were generously provided by Vicon (OMG plc, UK).

Load the static trial:

1. From the Model menu, select Hybrid Model from C3DFile
2. In the Select the calibration file for the new model dialog, select WalkingStaticLowerBody.c3d
   1. If using a knee alignment device, select Sub01_Static_KAD_01.c3d
3. Click Open.

Create Model Metrics

1. Create Subject Metrics:

1. Click Subject Data/Metrics button


2. Select the Mass and click the Modify Selected Item button
   Name: Mass
   Value or Expression: 75
   NOTE: This value MUST be changed for each subject


3. Select the Height and click the Modify Selected Item button\\  Name: Height
    Value or Expression: 1.76
   NOTE: This value MUST be changed for each subject


4. Click Add New Item button


   1. Name: MarkerRadius
      Value or Expression: 0.005
      NOTE: This value MUST reflect the size of the markers used in YOUR lab


   2. Name: Left_Knee_Width
      Value or Expression: 0.105
      Create the Right_Knee_Width
      NOTE: This value MUST be changed for each subject


   3. Name: Knee_Width
      Value or Expression: (Left_Knee_Width + Right_Knee_Width)/2


   4. Name: Left_Ankle_Width
      Value or Expression: 0.070
      Create the Right_Ankle_Width
      NOTE: This value MUST be changed for each subject


   5. Name: Ankle_Width
      Value or Expression: (Left_Ankle_Width + Right_Ankle_Width)/2



For an alternative pelvis definition with 3 targets see the original tutorial.

Pelvis with 4 Targets - Landmarks

1. Create SCRM:

1. Click Landmarks button
2. Click Add New Landmark button
3. Create Landmark: SCRM

   Landmark Name: SCRM
   Define Orientation Using:
      Starting Point: RPSI
      Ending Point: LPSI
   Offset Using the Following ML/AP/AXIAL Offsets:
      AXIAL: 0.5
   Check: Offset by Percent (1.0 = 100%)
   Check: Calibration Only Landmark

Pelvis with 4 Targets - Definition

2. Create Pelvis Segment:

1. In the Segments tab, select Pelvis in the Segment Name box.
2. Select CODA in the Segment Type box.
3. Click on the Create Segment button.
4. In the Pelvis tab, enter these values:

   Define Calibration Targets
      R.ASIS: RASI     L.ASIS: LASI
      R.PSIS: SCRM     L.PSIS: SCRM
   Define ASIS Target Radius for Hip Joint Center Offset
    ASIS Target Radius: MarkerRadius
   Select Tracking Targets:
        LASI, LPSI, RASI, RPSI


5. Click on Build Model.
6. Click on Close Tab before proceeding.

The CODA pelvis automatically creates hip joint centers using the Bell and Brand regression equations. The PiG model uses the Davis regression equations.

The directions below walk you through the necessary steps to create the RHJC and LHJC using the Davis regression equations. Please note, some metrics can be manually entered OR target data can be used to estimate these values.

1. Create Subject Metrics:

1. Click Subject Data/Metrics button
2. Click Add New Item button

   1. Name: Left_Leg_Length
      (A) Value or Expression: 0.940
          OR:
      (B) Value or Expression: DISTANCE(LASI,LANK)
      Create the Right_Leg_Length
      NOTE: If you specify an explicit value (ex. 0.940), this value MUST be changed for each subject


   2. Name: Leg_Length
      Value or Expression: (Left_Leg_Length + Right_Leg_Length)/2


   3. Name: C
      Value or Expression: 0.115*Leg_Length - 0.0153


   4. Name: theta
      Value or Expression: 28.4*PI/180.0


   5. Name: beta
      Value or Expression: 18.0*PI/180.0


   6. Name: Xdis
      (A) Value or Expression: 0.750
          OR:
      (B) Value or Expression: 0.1288*Leg_Length - 0.04856
      NOTE: If you specify an explicit value (ex. 0.750), this value MUST be changed for each subject


   7. Name: HJC_ML
      Value or Expression: (C * sin(theta) -0.5 * ASIS_distance)


   8. Name: HJC_AP
      Value or Expression: (-Xdis-MarkerRadius) * cos(beta)+ C * cos(theta) * sin(beta)


   9. Name: HJC_AX
      Value or Expression: (-Xdis-MarkerRadius) * sin(beta)- C * cos(theta) * cos(beta)



1. Create RHIP:

1. Click Landmarks button
2. Click Add New Landmark button
3. Create Landmark: RHIP

   Landmark Name: RHIP
   Define Orientation Using:
      Click Existing Segment: Pelvis
   Offset Using the Following ML/AP/AXIAL Offsets:
      X: -HJC_ML    Y: HJC_AP    Z: HJC_AX
   Do NOT Check: Offset by Percent (1.0 = 100%)
   Do NOT Check: Calibration Only Landmark

2. Create LHIP:

1. Click Landmarks button
2. Click Add New Landmark button
3. Create Landmark: LHIP

   Landmark Name: LHIP
   Define Orientation Using:
      Click Existing Segment: Pelvis
   Offset Using the Following ML/AP/AXIAL Offsets:
      X: HJC_ML    Y: HJC_AP    Z: HJC_AX
   Do NOT Check: Offset by Percent (1.0 = 100%)
   Do NOT Check: Calibration Only Landmark

1. Create Right Thigh Segment:

1. In the Segments tab, select Right Thigh in the Segment Name box.
2. Click on the Create Segment button.
3. In the Right Thigh tab, enter these values:

   Define Proximal Joint and Radius
      Lateral: None     Joint: RHJC     Medial: None
      Radius: 0.5*DISTANCE(RHJC,LHJC)
   Define Distal Joint and Radius
      Lateral: RKNE     Joint: None     Medial: None
      Radius: 0.5*Knee_Width + MarkerRadius
   Extra Target to Define Orientation
      Location: Lateral     RTHI
   Select Tracking Targets:
   Check: Use Calibration Targets for Tracking


4. Click on Build Model.
5. Click on Close Tab before proceeding.

1. Create RKJC:

1. Click Landmarks button
2. Click Add New Landmark button
3. Create Landmark: RKJC

   Landmark Name: RKJC
   Define Orientation Using:
       Click Existing Segment: Right Thigh
   Offset Using the Following ML/AP/AXIAL Offsets:
      ML: 0.0    AP: 0.0    AXIAL: -1.0
   Check: Offset by Percent (1.0 = 100%)
   Do NOT Check: Calibration Only Landmark

1. Create Right Shank Segment:

1. In the Segments tab, select Right Shank in the Segment Name box.
2. Click on the Create Segment button.

3. In the Right Shank tab, enter these values:

   Define Proximal Joint and Radius
      Lateral: RKNE     Joint: RKJC     Medial: None
   Define Distal Joint and Radius
      Lateral: RANK     Joint: None     Medial: None
      Radius: 0.5*Ankle_Width + MarkerRadius
   Select Tracking Targets:
   Check: Use Calibration Targets for Tracking


4. Click on Build Model.
5. Click on Close Tab before proceeding.

Foot Landmarks

1. Create RAJC:

1. Click Landmarks button
2. Click Add New Landmark button
3. Create Landmark: RAJC

   Landmark Name: RAJC
   Define Orientation Using:
       Click Existing Segment: Right Shank
   Offset Using the Following ML/AP/AXIAL Offsets:
      ML: 0.0    AP: 0.0    AXIAL: -1.0
   Check: Offset by Percent (1.0 = 100%)
   Do NOT Check: Calibration Only Landmark

2. Create R_TOE_Z:

1. Click Landmarks button
2. Click Add New Landmark button

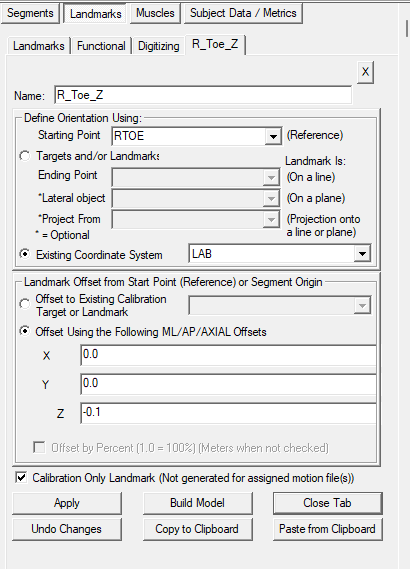

3. Create Landmark: R_TOE_Z

   Landmark Name: R_TOE_Z
   Define Orientation Using:
       Click Starting Point and Existing Segment: RTOE and LAB
   Offset Using the Following ML/AP/AXIAL Offsets:
      ML: 0.0    AP: 0.0    AXIAL: -0.1
   Check: Offset by Percent (1.0 = 100%)
   Do NOT Check: Calibration Only Landmark

Foot Definition

1. Create Right Foot Segment:

1. In the Segments tab, select Right Foot in the Segment Name box.
2. Click on the Create Segment button.

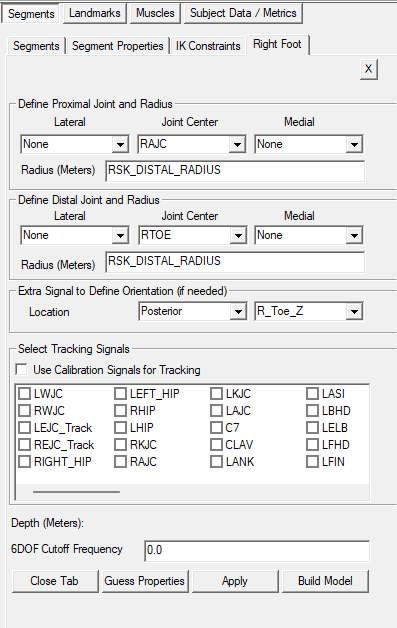

3. In the Right Foot tab, enter these values:

   Define Proximal Joint and Radius
      Lateral: None     Joint: RAJC     Medial: None
      Radius: RSK_DISTAL_RADIUS
   Define Distal Joint and Radius
      Lateral: None     Joint: RTOE     Medial: None
      Radius: RSK_DISTAL_RADIUS
   Extra Target to Define Orientation
      Location: Posterior     R_Toe_Z
   Select Tracking Targets:
         Select: RHEE, RMT5, and RTOE


4. Click on Build Model.
5. Click on Close Tab before proceeding.

1. Create RVirtualFoot Segment:

1. In the Segments tab, type RVirtualFoot in the Segment Name box.
2. Check Kinematic Only.
3. Click on the Create Segment button.
4. In the RVirtualFoot tab, enter these values:

   Define Proximal Joint and Radius
      Lateral: None     Joint: RHEE     Medial: None
      Radius: 0.1
   Define Distal Joint and Radius
      Lateral: None     Joint: RTOE     Medial: None
      Radius: 0.1
   Extra Target to Define Orientation
      Location: Anterior     RAJC
   Select Tracking Targets:
         Check: Use Calibration Targets for Tracking


5. Click on Build Model.
6. Click on Close Tab before proceeding.

2. Modify the Segment Coordinate System:

1. Define the Segment Orientation as:
   A/P Axis: +Z
   Distal to Proximal: -Y

To build the left side of the model start by copying and reflecting the appropriate landmarks that were created for the right side. Do the same for the thigh, shank and foot segments.

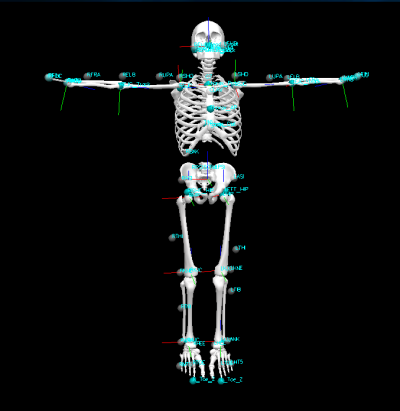

The images below show the original model, before modifications, compared to the modified model. Significant errors in tibial rotation and foot orientation can be seen in the original that are corrected for in the updated model.

Original:

Modified:
