Import_Data_From_Matlab
Overview
Visual3D will use DCOM to pull signals directly from the Matlab Workspace without having to save the m-file. This command is different from Get_From_Matlab because it allows the data to be imported to multiple files. This is possible because it uses a Matlab struct_array to store the data.
Pipeline Command
Import_Data_From_Matlab /SIGNAL_TYPES= ! /SIGNAL_FOLDER=PROCESSED /SIGNAL_NAMES= /MATLAB_ITEM_NAME= /INPUT_NAMES= ;
Command Parameters
Import_Data_From_Matlab
| /MATLAB_ITEM_NAME= | the name of the Matlab struct_array |
| /SIGNAL_TYPES= | the Visual3D Types |
| /SIGNAL_NAMES= | the Visual3D Names |
| /SIGNAL_FOLDER= | the Visual3D Folders |
| /INPUT_NAMES= | the names of the signal within the struct array |

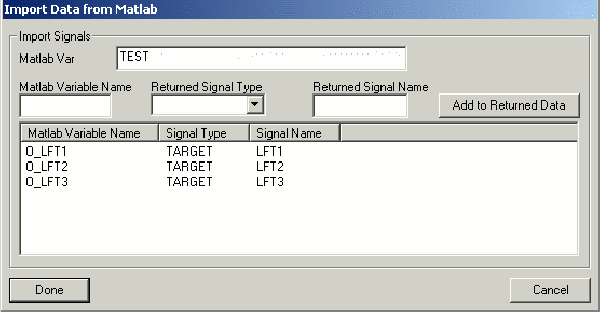

Dialog
