How to create a CODA pelvis relative to anatomical landmarks
The segment coordinate system for the CODA pelvis is the mid-point between the ASIS markers. The anatomical landmarks are actually posterior to the ASIS markers because the motion capture system tracks the centre of the marker.
Correcting the CODA definition
This is a modest error, but it can be corrected by creating landmarks that are posterior to the ASIS markers by the radius of the motion capture marker.
Step 1. Confirm the subject metric containing the marker radius
If the metric doesn't exist, create a new metric. Switch to Subject Data/Metrics TAB.
Select Add New Item and enter in the name Marker_Radius and the value.

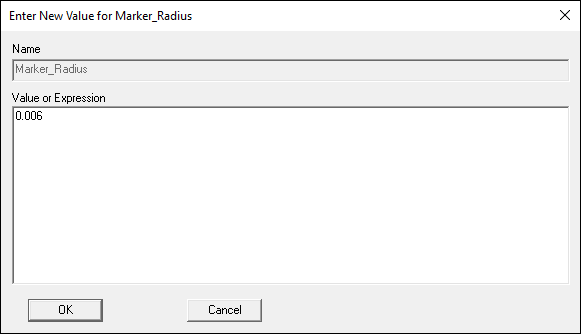

In this example, the marker has a diameter of 1.2 cm. Visual3D uses MKS units, so the value is 0.006 meters. NOTE: If the radius is not consistent with your marker radius, modify the value.
Step 2. Create landmarks for the ASIS markers

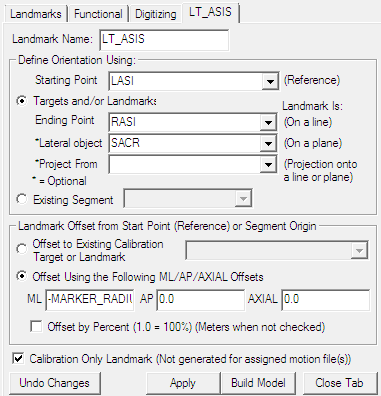

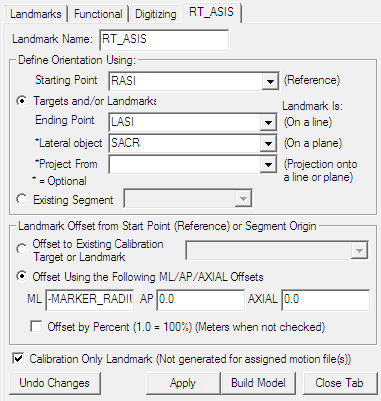

NOTE: the Medial-Lateral (ML) Edit box contains the expression -MARKER_RADIUS to define the offset.
Step 3. Create a CODA Pelvis
Follow the usual steps to create a CODA pelvis segment.

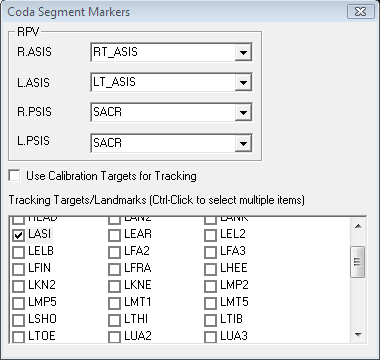

In this example, the locations defining the segment coordinate system for the pelvis are the landmarks RT_ASIS and LT_ASIS, and the marker SACR located at the midpoint of the PSIS markers.
The tracking markers are RASI, LASI, and SACR.
