Metric Sum
Overview
The Metric_Sum command will sum the signal components over a range from a Start event to End event. It can be found in the Pipeline Workshop under Metric.
Pipeline Command
The command syntax is as follows:
Metric_Sum ! /RESULT_METRIC_FOLDER=PROCESSED /RESULT_METRIC_NAME= ! /APPLY_AS_SUFFIX_TO_SIGNAL_NAME=FALSE /SIGNAL_TYPES= ! /SIGNAL_FOLDER=ORIGINAL ! /SIGNAL_NAMES= ! /COMPONENT_SEQUENCE= /EVENT_SEQUENCE= /EXCLUDE_EVENTS= ! /GENERATE_MEAN_AND_STDDEV=TRUE ! /GENERATE_MEAN_AND_STDDEV_ACROSS_SUBJECTS=FALSE ! /APPEND_TO_EXISTING_VALUES=FALSE ;
Command Parameters
The following table shows the command parameters seen above and their descriptions:
| Metric_Sum | |
| /Signal_Types= | The type of signal to be processed |
| /Signal_Names= | The name of the signal to be processed |
| /Signal_Folder | The folder of the signal to be processed |
| /Signal_Components= | The component of the signal to be processed |
| /Event_Sequence= | The Start and End labels |
| /Exclude_Events= | Exclude ranges containing this event |
| /SEQUENCE_PERCENT_START= | Within the event sequence specify the beginning of the range as a percent |
| /SEQUENCE_PERCENT_END= | Within the event sequence specify the end of the range as a percent |
| /Result_Metric_Name= | The name of the resulting signal |
| /Result_Metric_Folder= | The folder of the resulting signal. |
| /Apply_As_Suffix_To_Signal_Name= | Apply a suffix to the Signal_Name |
| /Generate_Mean_And_STDDEV= | Generate the mean and standard deviation both within each active file and across all active files |
| /Append_To_Existing_Values= | Append the results to an existing signal. |
| ; |
Dialog
The command can be edited in a text editor or in a dialog form. To edit in the dialog pop up form either click on the Edit button in the pipeline workshop or double-click on the pipeline command. The dialog is shown below.
The dialog box allows you to assign values to the command parameters outlined above.
Metric Sum Examples
In the example below the Metric Sum command is used to find the total work done by the right ankle by summing positive and negative work done between events.
! Compute positive and negative work for each range of positive power. !********************************************************************** ! Calculate right ankle positive work by time integration of right ankle power from ! PowerPos event to PowerNeg event Metric_Integrate /Signal_Types=LINK_MODEL_BASED /Signal_Names=Right Ankle Power /Signal_Folder=ORIGINAL /Signal_Components=X /Event_Sequence=PowerPos+PowerNeg /Exclude_Events= /Metric_Name=Right Ankle Positive Work /Apply_As_Suffix_To_Signal_Name=FALSE /Generate_Mean_And_STDDEV=FALSE /Append_To_Existing_Values=FALSE ; ! Calculate right ankle negative work by time integration of right ankle power ! from PowerNeg event to PowerPos event Metric_Integrate /Signal_Types=LINK_MODEL_BASED /Signal_Names=Right Ankle Power /Signal_Folder=ORIGINAL /Signal_Components=X /Event_Sequence=PowerNeg+PowerPos /Exclude_Events= /Metric_Name=Right Ankle Negative Work /Apply_As_Suffix_To_Signal_Name=FALSE /Generate_Mean_And_STDDEV=FALSE /Append_To_Existing_Values=FALSE ; !************************************************************************ ! Compute the total positive and total negative work by summing the work. !************************************************************************ !Compute total positive work for the right ankle Metric_Sum /Signal_Types=METRIC /Signal_Names=Right Ankle Positive Work /Signal_Folder=PROCESSED /Signal_Components=X /Event_Sequence= /Exclude_Events= /Metric_Name=Right Ankle Total Positive Work /Apply_As_Suffix_To_Signal_Name=FALSE /Generate_Mean_And_STDDEV=FALSE /Append_To_Existing_Values=FALSE ; !Compute total negative work for the right ankle Metric_Sum /Signal_Types=METRIC /Signal_Names=Right Ankle Negative Work /Signal_Folder=PROCESSED /Signal_Components=X /Event_Sequence= /Exclude_Events= /Metric_Name=Right Ankle Total Negative Work /Apply_As_Suffix_To_Signal_Name=FALSE /Generate_Mean_And_STDDEV=FALSE /Append_To_Existing_Values=FALSE ;

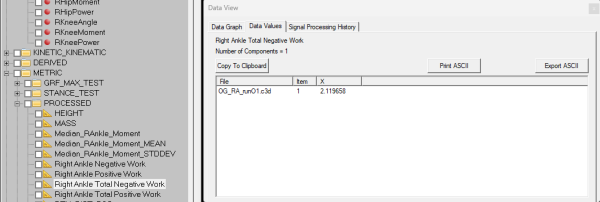

The result should look similar to this:
- An example of the command Metric_Sum is found here. This script uses metric_sum command to find a signal value at the analog frame rate. For details go to the page.
- An example can be found on Statistics Example 4#Linear_Regression_Explicit Meta-Command where the meta-command uses the Metric_Sum command to calculate a linear regression.
- Another example can be found on Statistics Example 5#Linear Regression with Events Meta-Command where the meta-command uses the Metric_Sum command to calculate a linear regression.
