File Open

The File_Open pipeline command is used to load a file into the Visual3D workspace.

• Usually, this command is the first step in a pipeline as all subsequent operations rely on having an active file loaded.
• For supported file and filter types, see the notes section.

The command below is as seen in the Visual3D application.

File_Open
! /FILE_NAME=
! /FILE_PATH=
! /SEARCH_SUBFOLDERS=FALSE
! /SUFFIX=
! /SET_PROMPT=File_Open
! /ON_FILE_NOT_FOUND=PROMPT
! /FILE_TYPES_ON_PROMPT=
;

The following table shows the command parameters:

The command can be edited in a text editor or in a dialog form. To edit in the dialog, either click on the Edit button in the pipeline workshop or double-click on the pipeline command.

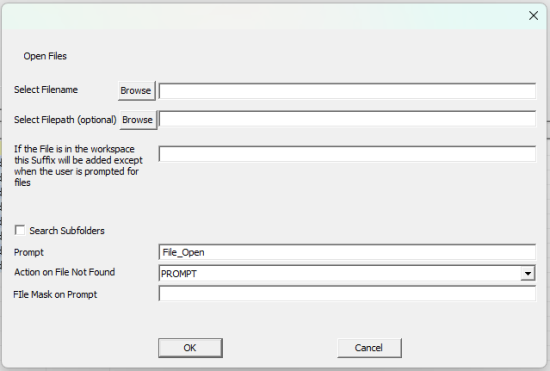

The dialog is shown below:

• Select Filename: Manually browse for and select the specific file you want to open.
• Select Filepath (Optional): Choose the folder where the file is stored.
• Suffix: If a file with this suffix exists in the folder, it will be automatically added to the file name.
• Search Subfolders: If checked, Visual3D will search within subfolders of the specified file path to find the file.
• Prompt: Sets the title shown in the file selection dialog when prompting the user to choose a file.
• Action on File Not Found: What Visual3D should do if the file is not found. Options include PROMPT or SKIP
• File Mask on Prompt: A filter for which file types appear in the dialog.

The following examples will go through the use of the File_Open command within the Visual3D application.

This example will prompt the user for the files by opening a dialog box for selection.

File_Open
/FILE_NAME=
! /FILE_PATH=
! /SEARCH_SUBFOLDERS=FALSE
! /SUFFIX=
! /SET_PROMPT=File_Open
! /ON_FILE_NOT_FOUND=PROMPT
! /FILE_TYPES_ON_PROMPT=
;

This example specifies the filename explicitly. Note that the filename should contain the complete path to the file.

File_Open
/FILE_NAME= c:\demo_files\walking.c3d
! /FILE_PATH=
! /SEARCH_SUBFOLDERS=FALSE
! /SUFFIX=
! /SET_PROMPT=File_Open
! /ON_FILE_NOT_FOUND=PROMPT
! /FILE_TYPES_ON_PROMPT=
;

This example specifies the filename by using a wildcard. All C3D files in the c:\demo_files folder will be opened.

File_Open
/FILE_NAME= c:\demo_files\*.c3d
! /FILE_PATH=
! /SEARCH_SUBFOLDERS=FALSE
! /SUFFIX=
! /SET_PROMPT=File_Open
! /ON_FILE_NOT_FOUND=PROMPT
! /FILE_TYPES_ON_PROMPT=

This example uses Pipeline Parameters to specify the folder containing the data files and uses a wildcard in the filename

Set_Pipeline_Parameter_To_Folder_Path
/PARAMETER_NAME= DATA_FOLDER
/PARAMETER_VALUE=c:\demo_files
;

! Now open the file.
File_Open
/FILE_NAME= ::DATA_FOLDER&*.c3d
! /FILE_PATH=
! /SEARCH_SUBFOLDERS=FALSE
! /SUFFIX=
! /SET_PROMPT=File_Open
! /ON_FILE_NOT_FOUND=PROMPT
! /FILE_TYPES_ON_PROMPT=

This example uses Pipeline Parameters to specify the default data folder containing the data files and uses a wildcard in the filename.

Set_Pipeline_Parameter_To_Folder_Path
/PARAMETER_NAME= DATA_FOLDER
/PARAMETER_VALUE=VISUAL3D_DEFAULT_DATA_FOLDER
;

! Now open the file.
File_Open=
File_Open
/FILE_NAME= ::DATA_FOLDER&*.c3d
! /FILE_PATH=
! /SEARCH_SUBFOLDERS=FALSE
! /SUFFIX=
! /SET_PROMPT=File_Open
! /ON_FILE_NOT_FOUND=PROMPT
! /FILE_TYPES_ON_PROMPT=

The following file types are supported and can be added within Visual3D:

• .c3d - C3D File or www.c3d.org]
• .cmo - Visual3D Workspace File
• .txt - Visual3D TAB delimited text File
• .gcd - Vicon GCD File
• .ndi - NDI Aurora File
• .p2d - P2D File

You can filter using the following filter types:

• C3D
• CMO
• VND
• P2D
• ASCII
• XML
• NDI
• GCD
• MVNX

Multiple file types can be specified by using a plus sign (ex. C3D+CMO+P2D)

Back to Pipeline Commands Reference
